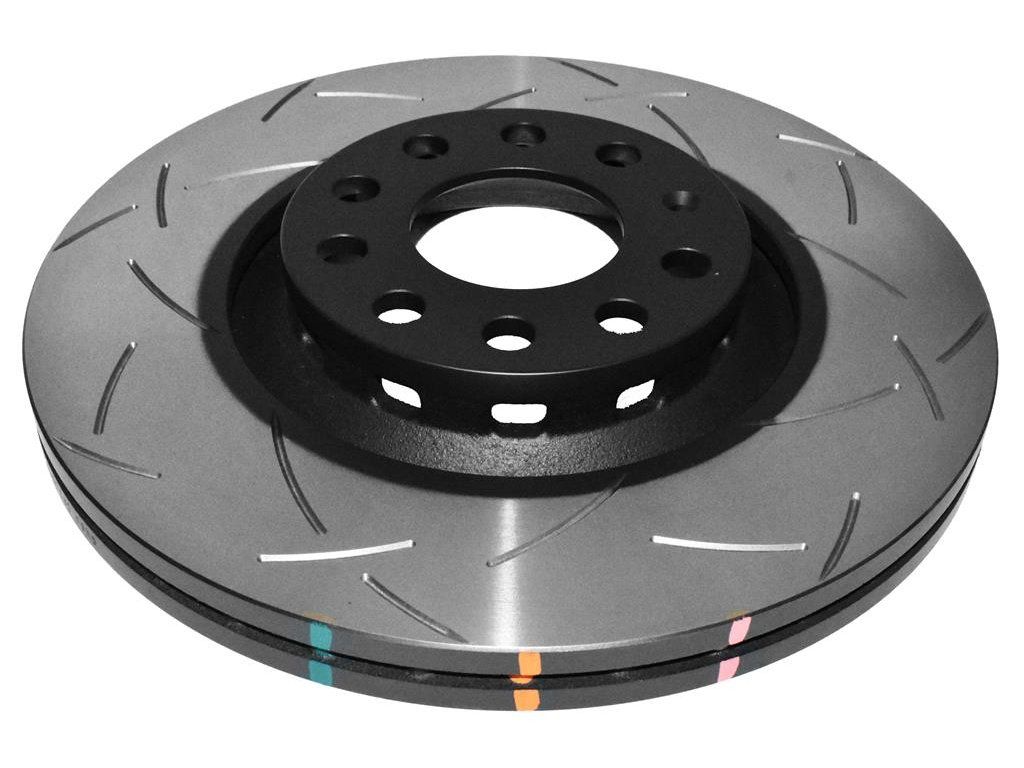

DBA 4000 Series - T3 | Front, ø312 mm (DBA42800S)
Kód: DBA42800SDetailní popis produktu
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots" | Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 Kangaroo Paw – 144 diamond and tear drop pillar ventilation system | Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron | An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling | Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring | Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas | Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
Doplňkové parametry
| Kategorie: | BRZDOVÉ KOTOUČE |
|---|---|
| EAN: | 9316391385383 |
| Značka vozu: | AUDI, SEAT, SKODA, VOLKSWAGEN |
| Modely AUDI: | A4 B7, A4 Convertible, A4 Convertible quattro, A4 quattro B7, A6 C5/4B, A6 quattro Avant C5/4B, A6 quattro C5/4B |
| Modely VW: | Passat (B5) |
| Modely ŠKODA: | Superb (3U) |
| Modely SEAT: | Exeo |
| Motorizace: | 1.8 Turbo, 2.0, 2.0 TD, 2.0 Turbo, 2.4, 2.5 TD, 2.7 TD, 3.0, 3.0 TD, 2.0 Turbo 200_HP, 2.0 TD 140_HP, 2.0 TD 170_HP, 2.0 TD 143_HP, 1.8 Turbo 160_HP, 1.8 Turbo 150_HP, 2.5 TD 180_HP, 2.5 TD 163_HP, 1.8 Turbo 120_HP, 2.0 Turbo 211_HP, 1.9 TD 115_HP, 1.9 TD 130_HP, 1.9 TD 100_HP, 2.5 TD 165_HP -3U6910010, 2.8 195_HP -3U6910010, 1.9 TD 110_HP, 2.3 168_HP, 2.3 168_HP 4Motion, 2.5 TD 180_HP 4Motion, 2.8 190_HP, 2.8 190_HP 4Motion |
| Rok výroby: | 1999-2005, 2000-2005, 2001-2005, 2002-2005, 2002-2006, 2002-2009, 2003-2005, 2003-2006, 2003-2009, 2004-2008, 2005-2009, 2006-2008, 2006-2009, 2008-2010, 2009-2013, 2010-2013 |
| Náprava: | Přední |
| Průměr [mm]: | 312 |
| Chlazení: | Kangaroo Paw |
| Počet otvorů: | 5 |
| Vnitřní průměr [mm]: | 68 |
| Minimální tloušťka [mm]: | 23 |
| Tloušťka [mm]: | 25 |
| Výška [mm]: | 46.2 |
| Pitch Circle [mm]: | 112 |
| Stage: | Stage 4 |
| ECE R90 Number: | E11*90R02/06*60529*00 |
