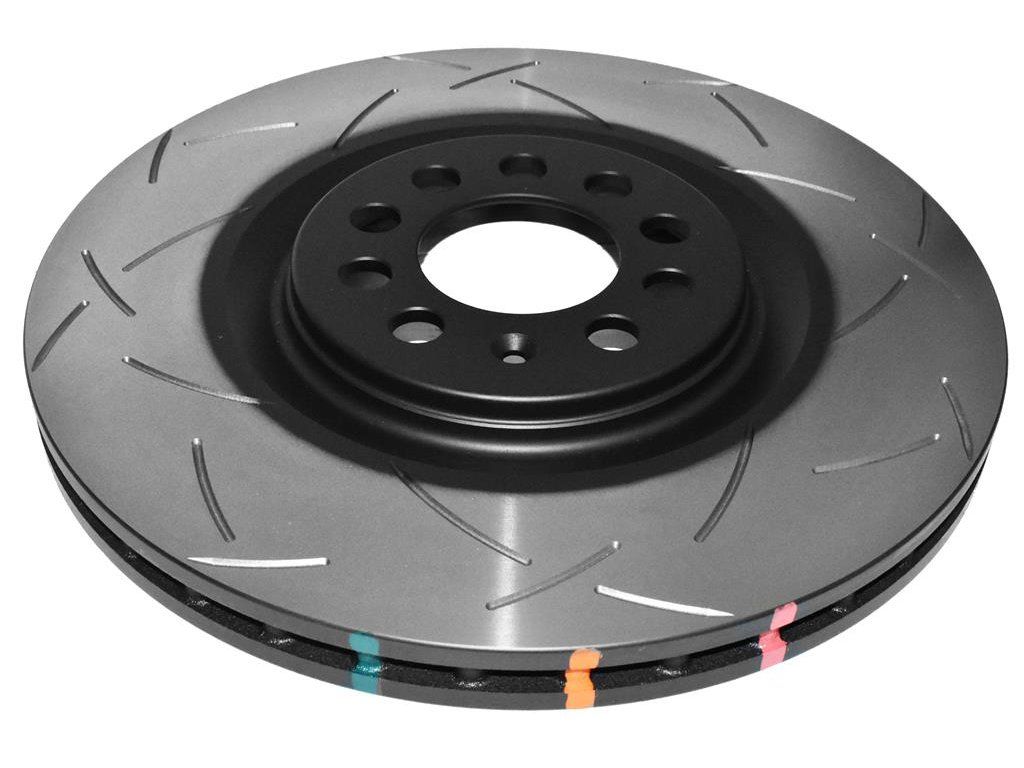

DBA 4000 Series - T3 | Front, ø312 mm (DBA4838S)
Kód: DBA4838SDetailní popis produktu
| Feature Description | Advantage | Benefit |
 "T3 Slot 48 precision CNC machined slots" | Tri-Symmetrical curve slots dampens the vibration harmonics or noise | A quieter, responsive and smoother brake pedal feel |
| Increased number of out-gassing exit points for brake pad friction gasses to escape through | Increases the consistency and effectiveness of every brake stop | |
| Universal slot design | Eliminates the need for left and right discs | |
 Kangaroo Paw – 144 diamond and tear drop pillar ventilation system | Increased surface area resulting in greater heat dissipation | Minimises brake fade and increases braking effectiveness |
| Increased surface area resulting in greater heat dissipation | Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs | |
 XG150 High Carbon Alloyed Iron | An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermal Stability Profiling | Special formulation designed to respond to DBA’s TSP process | Minimises warping and cracking and prolongs the service life of the rotor |
 Thermographic Temperature Monitoring | Heat paint markings change colour at specific temperature thresholds | Offers the driver a clear indication of peak braking temperatures |
| When temperature thresholds are exceeded paint markings will permanently change colours | Allows the driver to monitor rotor fatigue and decide on rotor replacement and to assist resellers with warranty claims | |
 Paint protection on non-friction areas | Reduces corrosion | Stops any unsightly rust formation |
| Enhances appearance | Adds value to the product |
Doplňkové parametry
| Kategorie: | BRZDOVÉ KOTOUČE |
|---|---|
| EAN: | 9316391386885 |
| Značka vozu: | AUDI, SEAT, SKODA, VOLKSWAGEN |
| Modely AUDI: | A1 8X, S1 8X, TT 8N, TT quattro 8N |
| Modely VW: | Beetle, Bora, Golf (Mk4), Polo (6C), Polo (6R), Polo (9N) |
| Modely ŠKODA: | Octavia (1U) |
| Modely SEAT: | Ibiza (6J), Ibiza (6L), Ibiza (6P), Leon (1M), Toledo |
| Motorizace: | 1.8 Turbo, 2.3, 2.8, 1.4 Turbo 150_HP, 1.8 Turbo 180_HP, 1.4 Turbo 122_HP, 1.8 Turbo 150_HP, 1.9 TD 150_HP, 1.9 TD 130_HP, 1.4 Turbo 180_HP, 1.8 Turbo Cupra 180_HP, 1.9 TD Cupra 160_HP, 1.4 Turbo and Supercharged 185_HP, 1.6 TD 116_HP, 2.0 Turbo 230_HP (PR-1ZS) 100 pcd, 1.8 Turbo Cupra 192_HP, 1.8 Turbo 192_HP, 2.0 220_HP, 1.4 Turbo GTi 180_HP PR-1ZP/1ZR, 1.8 Turbo 225_HP, 1.8 Turbo 237_HP, 1.9 TD Syncro 150_HP, 2.3 170_HP, 1.8 Turbo GTi 180_HP, 1.8 Turbo RS 180_HP, 1.8 Turbo vRS 180_HP |
| Rok výroby: | 1998-2006, 1999-2005, 1999-2006, 2000-2005, 2001-2005, 2001-2006, 2002-2006, 2003-2005, 2003-2006, 2004-2008, 2005-2006, 2006-2009, 2009-2015, 2010-2014, 2012-2018, 2013-2017, 2014-2017, 2014-2018, 2015-2017 |
| Náprava: | Přední |
| Průměr [mm]: | 312 |
| Chlazení: | Kangaroo Paw |
| Počet otvorů: | 5 |
| Vnitřní průměr [mm]: | 65 |
| Minimální tloušťka [mm]: | 23 |
| Tloušťka [mm]: | 25 |
| Výška [mm]: | 34.2 |
| Pitch Circle [mm]: | 100 |
| Stage: | Stage 4 |
| ECE R90 Number: | E11*90R02/06*60529*00 |
